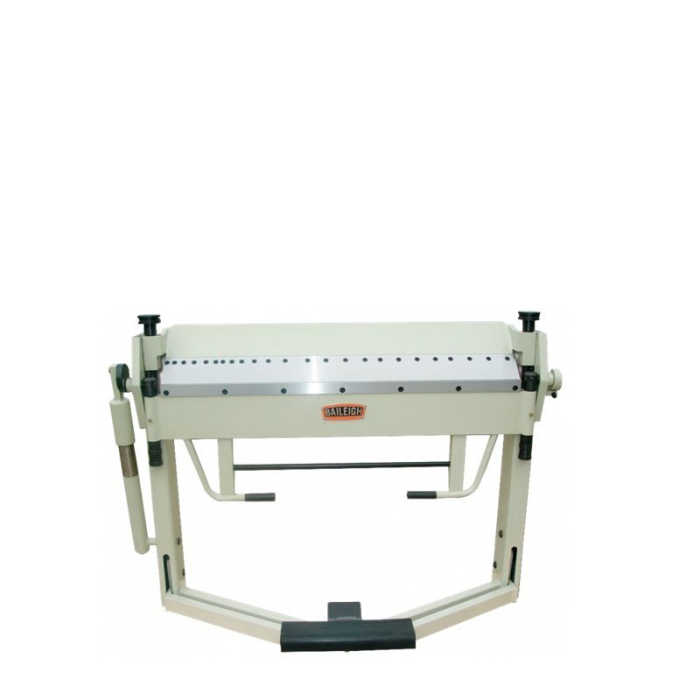

BAILEIGH METAL BENDING BOX - FINGER BRAKE - BB-5014F

SKU: 173240
MNF Code: BB-5014F

Out of stock/Available to order

Heavy duty 50" box and pan brake with foot operates material clamping.

Allows the operator to clamp the material with his/her foot, so both hands are free for perfect positioning of the sheet metal before clamping the material in place
Comes standard with hardened fingers in an assortment of different widths to accommodate bending various sizes and shapes of tanks, pans, boxes and much more
Easy to adjust gap adjustment, this is important to get a correct bend when braking various gauges of sheet metal
Spring loaded cylinder assists lifting the apron which gives assistance to the operator when bending at full capacity, which is an impressive 14 gauge at a full 50 inches
Hardened fingers and bending die for long life and years for use
Adjustable stop rod

Thickness (SS): 14 ga. (18 ga.)

Box Depth: 101 mm

Max. Clamping Bar Lift Foot Operated: 47 mm

Shipping Weight: 364 kgs.

Length: 1270 mm

Shipping Dimensions: 1702 x 711 x 1207 mm
