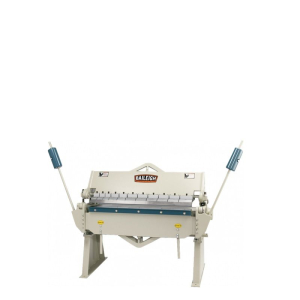

BAILEIGH METAL BENDING BOX - FINGER BRAKE - BB-4812
SKU: 173235
MNF Code: BB-4812
MNF Code: BB-4812
Out of stock/Available to order
Small compact 4 foot box and pan brake
- Great fit for tight floor plans
- Heavy duty construction makes it one of the most powerful manual finger breaks available
- Fully welded framework, supported by solid steel adjustable trusses
- Can bend 12 gauge mild steel sheet metal over the entire 48” length
- Comes standard with 11 hardened and polished 3 piece fingers of varying lengths that allow the operator to configure the sheet metal brake in any way possible
- Because of the three piece design, the box depth of the BB-4812 is 6’ one of the largest on the market
- Heavy duty apron has an integrated stop rod for repeatability
- Included is a pair of heavy counter weights to assist the operator in the bending of 12 gauge sheet metal
Min Reverse Bend: 16 mm
Thickness (SS): 12 ga. (16 ga.)
Box Depth: 152 mm
Beam Adjustment: 25.4 mm.
Bend Angle: 0 – 135°
Finger Sizes: 3" – 4" – 5" – 6"
Shipping Weight: 900 kgs.
Length: 1270 mm
Shipping Dimensions: 1803 x 864 x 1118 mm
| Brand | Baileigh |
|---|
There are no downloads for this product.
